56M3A Ch=HS-514
Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Year
- 1955 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 81763

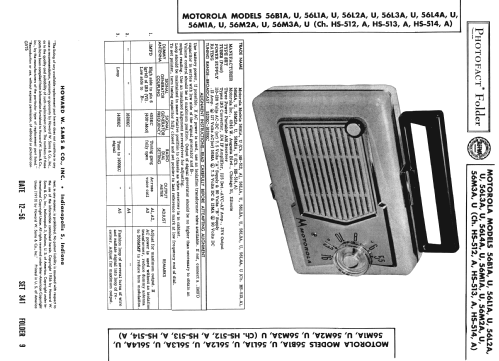

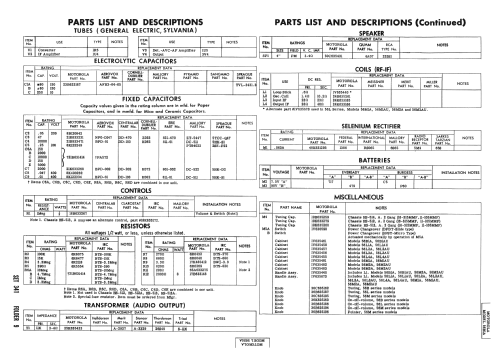

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line / Batteries (any type) / 117 AC DC/7.5/90 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Metal case
- from Radiomuseum.org
- Model: 56M3A Ch=HS-514 - Motorola Inc. ex Galvin Mfg.Co
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
- Color=Tan&White; Selenium Rectifier.
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 16, 1956
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
