• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1949 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 48927

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6SG7 6SB7Y 6SS7 6AQ6 6G6GT

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 8 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• from Radiomuseum.org
• Model: 57B61V Ch= HS-77 - Motorola Inc. ex Galvin Mfg.Co

• Notes

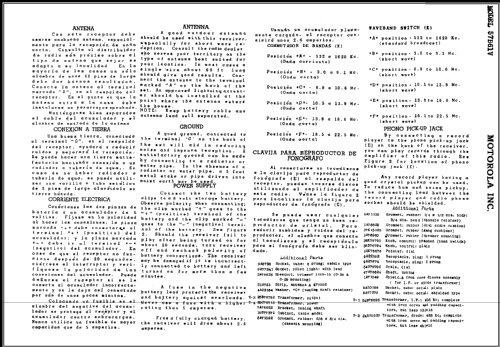

• Frequency Ranges:
  BC band - 532 to 1620 kc
  SW1 - 3 to 9.1 mc
  SW2 - 8.8 to 10.6 mc
  SW3 - 10.5 to 13.9 mc
  SW4 - 13.8 to 16.6 mc
  SW5 - 16.5 to 22.5 mc
  Vibrator for +B.

• External source of data
• Ernst Erb

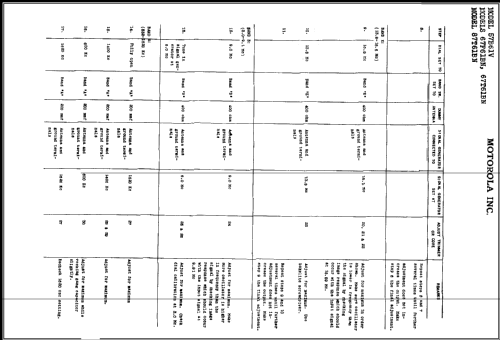

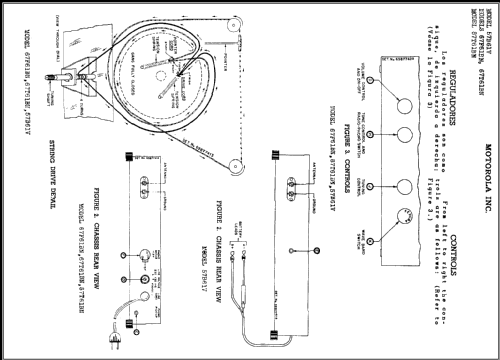

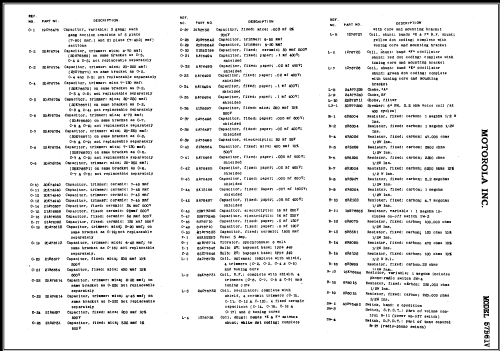

• Circuit diagram reference
• Rider's Perpetual, Volume 17 = 1948 and before
