• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1949

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 71167

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AT6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF * kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org

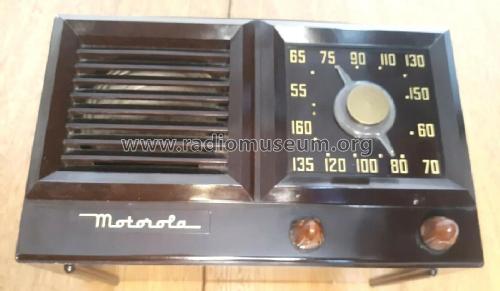

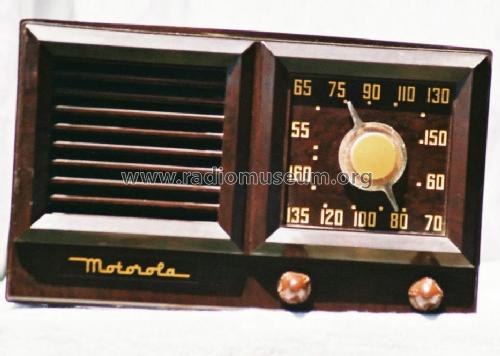

• Model: 58GI - Motorola Inc. ex Galvin Mfg.Co

• Dimensions (WHD)
• 10.25 x 6.5 x 5 inch / 260 x 165 x 127 mm

• Other Models

• Here you find 4607 models, 2964 with images and 4106 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
