• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1948 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 119350

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1R5 1U4 1S5 3S4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / 117 / 3 & 67.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm

• Material
• Metal case

• from Radiomuseum.org

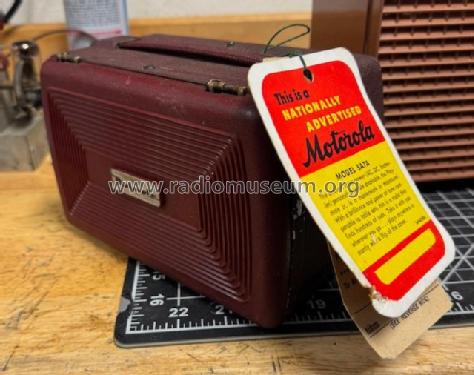

• Model: 5A7C HS-165 - Motorola Inc. ex Galvin Mfg.Co

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 4 x 7.5 x 5 inch / 102 x 191 x 127 mm

• Notes
• Loop aerial in flip up lid. Set plays when lid opens.

• Net weight (2.2 lb = 1 kg)
• 2.2 kg / 4 lb 13.5 oz (4.846 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Keith Staines. See "Data change" for further contributors.
