• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 72145

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 5C14GW Ch= HS-661 - Motorola Inc. ex Galvin Mfg.Co

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 14 x 6.25 x 5.5 inch / 356 x 159 x 140 mm

• Notes
• The Motorola Model 5C14GW is an AC operated 5 Tube AM Receiver with Electric Clock. BC Band Tuning Range: 532 to 1620KHz. Color = Green (front) and Antique White (rear). The chassis of this receiver is connected directly to the power line, thus an isolation transformer should be used when servicing this radio.

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 19, 1959

• Literature/Schematics (1)

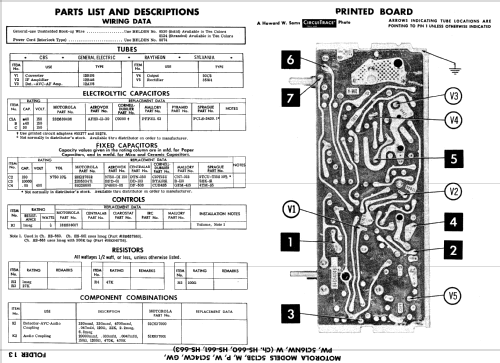

• Photofact Folder, Howard W. SAMS (Date 10-59, Set 460, Folder 13)

• Literature/Schematics (2)
• - - Manufacturers Literature

• Author
• Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
