• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 72151

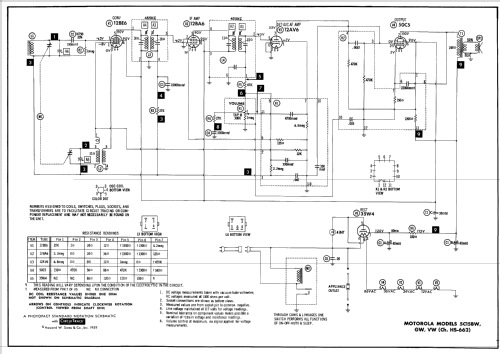

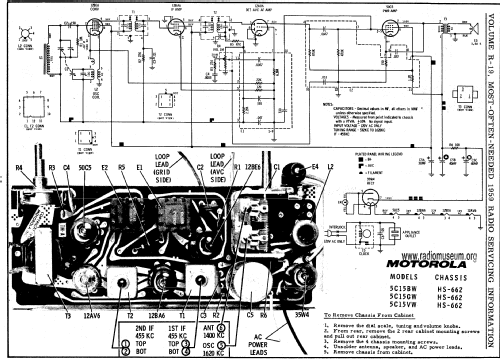

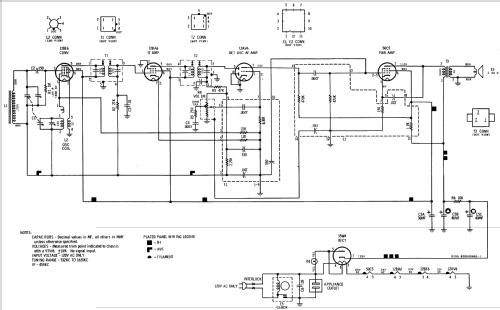

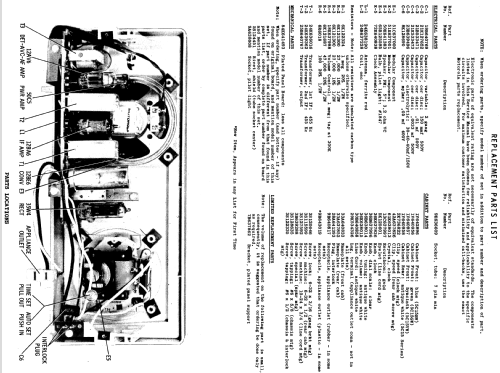

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 5C15VW Ch= HS-662 - Motorola Inc. ex Galvin Mfg.Co

• Shape

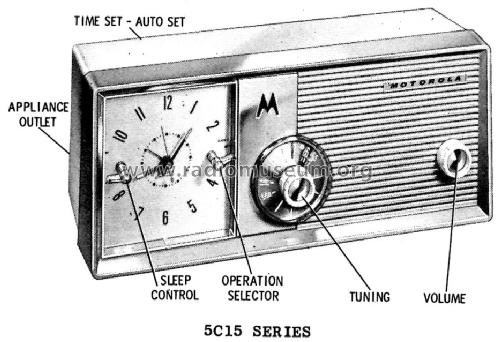

• Tablemodel with Clock ((Alarm-) Clock Radio).

• Notes
• The Motorola Model 5C15VW is an AC operated 5 Tube AM Receiver with Electric Clock. Color = Hyacinth (front) and Antique White (rear). BC Band Tuning Range: 532 to 1620KHz. The chassis of this receiver is connected directly to the power line, thus an isolation transformer should be used when servicing this radio. This model has an applicance outlet located on the back of the receiver.

• Source of data
• Beitman Radio Diagrams, Vol. 19, 1959

• Literature/Schematics (1)

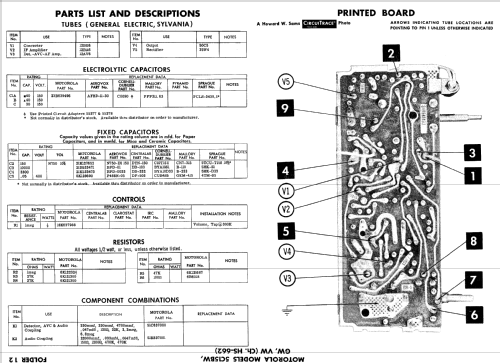

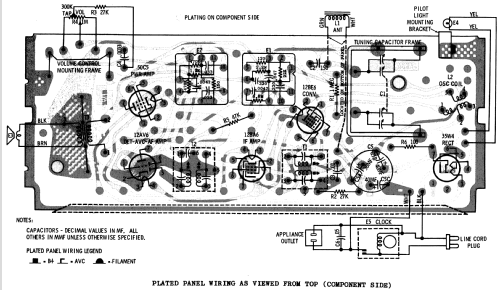

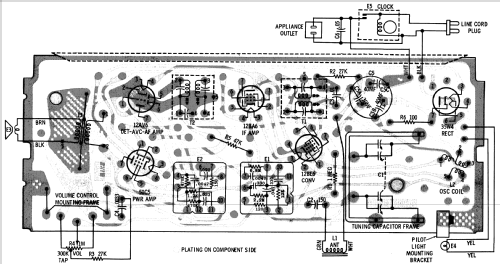

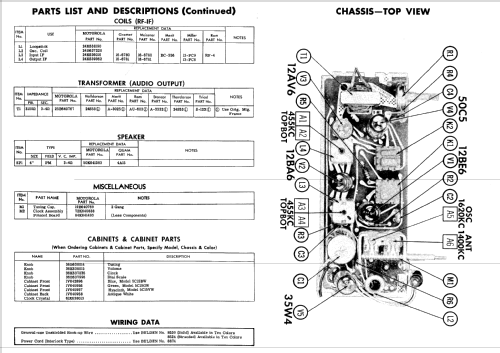

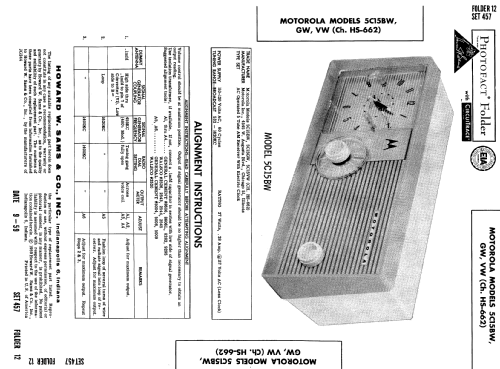

• Photofact Folder, Howard W. SAMS (Date 9-59, Set 457 Folder 12)

• Literature/Schematics (2)
• - - Manufacturers Literature

• Author
• Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
