5C16NW Ch= HS-663

Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1959
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 72147

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 110 to 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 5C16NW Ch= HS-663 - Motorola Inc. ex Galvin Mfg.Co
  • Shape
  • Tablemodel with Clock ((Alarm-) Clock Radio).
  • Notes

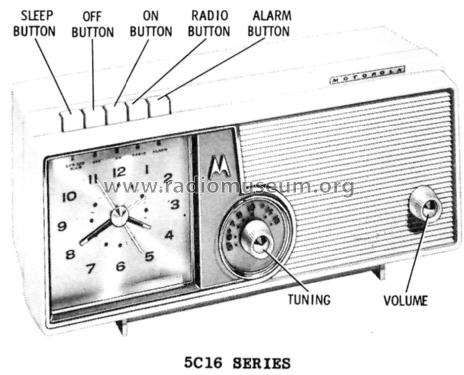

  • The Motorola Model 5C16NW is an AC operated 5 Tube AM Receiver with Electric Clock. The BC Band Tuning Range is 532 to 1620KHz. Cabinet color is Mocha (front) and Antique White (rear). Has appliance outlet on back of cabinet, which is controlled from the clock.

    The chassis of this receiver is connected directly to the power line, thus an isolation transformer should be used when servicing this radio.

    The following models use the same schematic and cabinet but have different cabinet colors:

    Model Number Cabinet Color
    5C16W Antique White
    5C16NW Mocha (front) and Antique White (rear)



  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 19, 1959
  • Literature/Schematics (2)

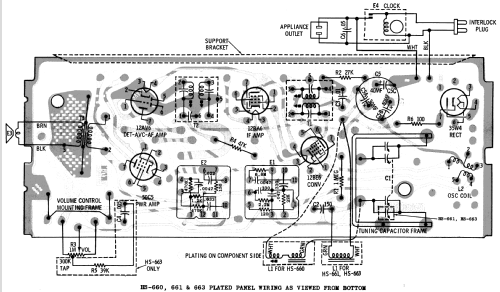

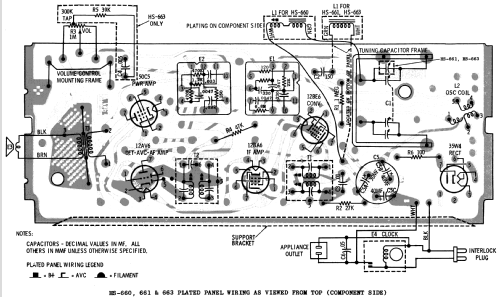

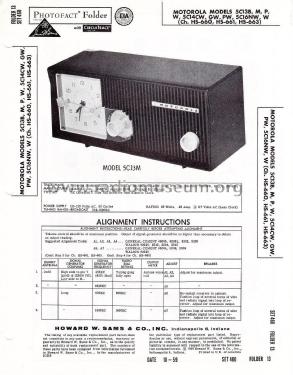

  • - - Manufacturers Literature (Motorola Datasheet 68P643078)
