5C27 (-N, -V, -W)
Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Year
- 1957/1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 233707

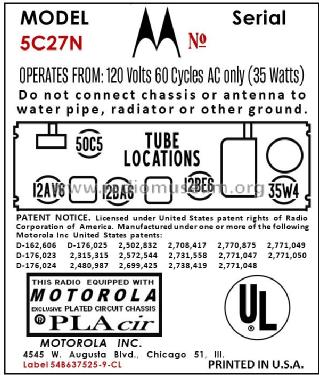

RECONSTRUCTED LABEL
RECONSTRUCTED LABEL
RECONSTRUCTED LABEL
- Number of Tubes
- 5
- Valves / Tubes
- Main principle
- Superheterodyne (common)
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 5C27 - Motorola Inc. ex Galvin Mfg.Co
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Notes
-
This model is available in different colors: model 5C27N in Mocha, model 5C27V in Hyacinth and model 5C27W in Antique White. With Placir chassis.
- Literature/Schematics (3)

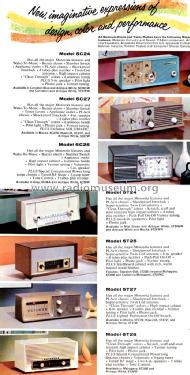

- Motorola Folder No. 3752, for 1958.
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
- Other Models
-
Here you find 4607 models, 2964 with images and 4106 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
Collections
The model 5C27 (-N, -V, -W) is part of the collections of the following members.
