• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1950 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 49045

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes

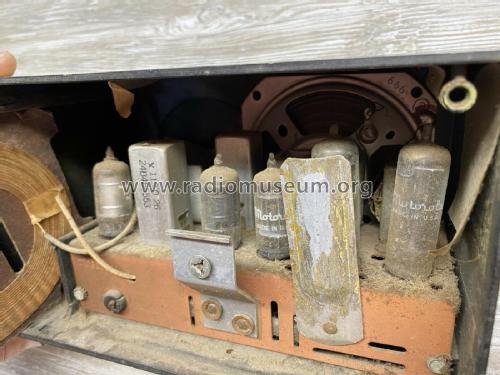

• 12BE6 12BA6 12AT6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

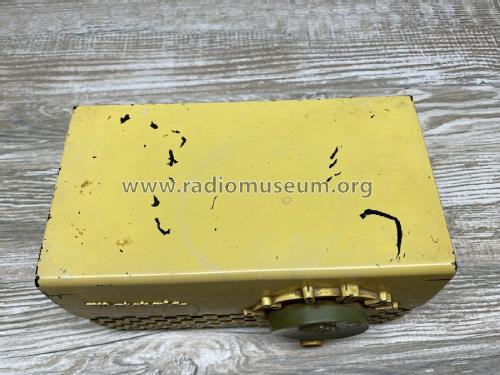

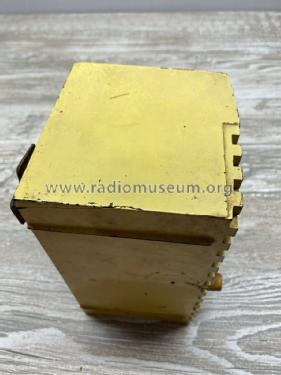

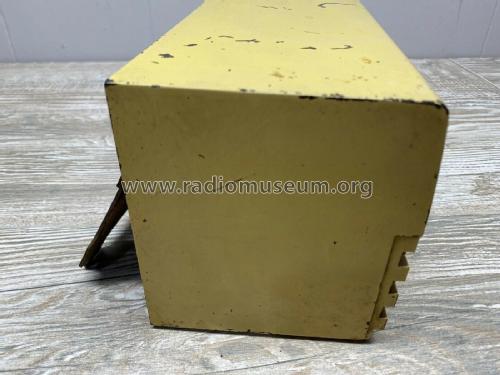

• Model: 5R16U Ch= HS-242 [yellow] - Motorola Inc. ex Galvin Mfg.Co

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes

• Motorola model 5R11U is an AC/DC operated superheterodyne receiver with loop antenna.
  Color=yellow.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 21, Copyright 1950

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 115, Folder 6 dated 12-50)
