5R23N Ch= HS-600
Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Year
- 1957/1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 84382

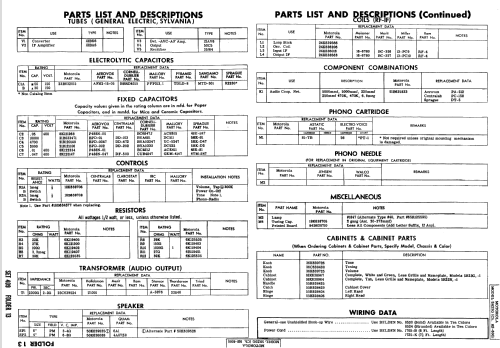

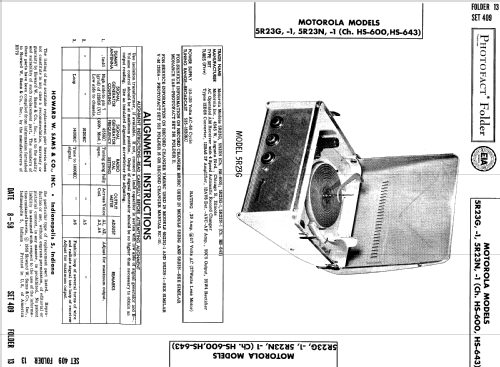

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- 2 Loudspeakers
- from Radiomuseum.org
- Model: 5R23N Ch= HS-600 - Motorola Inc. ex Galvin Mfg.Co
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Notes
-
Color: Brown and Sand. See also the Motorola model 5R23G with the chassis HS-600 in Mint Green and Antique White.
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 18, 1958
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 8-58, Set 409, Folder 13)
- Literature/Schematics (3)
- Motorola Folder No. 3754 for 1958.
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
