5T23N-1 Ch= HS-627
Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Year
- 1957/1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 84392

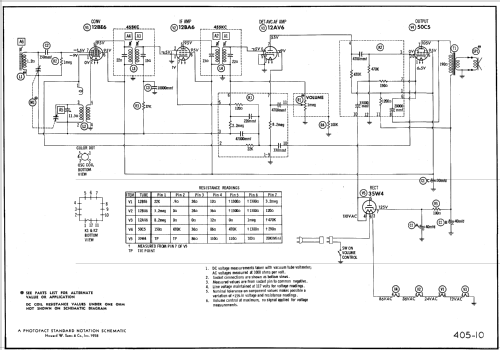

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 5T23N-1 Ch= HS-627 - Motorola Inc. ex Galvin Mfg.Co
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes
-
Color= Brown (Mocha). This Motorola model 5GT23 is available in different colors: model 5T23N in Mocha, model 5T23P in Pink, model 5T23W in Antique White and model 5T23Y in Yellow (Citron). All with Placir chassis.
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 18, 1958
- Mentioned in
- Collector's Guide to Antique Radios (6th edition)
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 7-58, Set 405, Folder 10)
- Literature/Schematics (3)
- Motorola Folder No. 3752, for 1958.
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
