• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1940/1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 49113

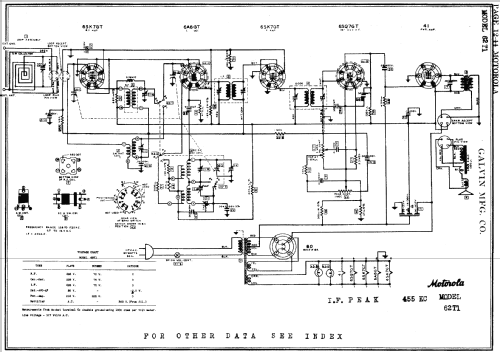

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6SK7GT 6A8GT 6SK7GT 6SQ7GT 41 80

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 62T1 - Motorola Inc. ex Galvin Mfg.Co

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 16.5 x 9.625 x 9.25 inch / 419 x 244 x 235 mm

• Notes

• Tuning Range 540 to 1720 kc and 5650 to 18,000 kc. "Aero-Vane"-Loop.

• Net weight (2.2 lb = 1 kg)
• 16 lb 5 oz (16.313 lb) / 7.406 kg

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 12 = ca. 1941 and before

• Literature/Schematics (1)
• -- Schematic

• Literature/Schematics (3)
• Motorola Folder H-201, for 1941.
