• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1954/1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 80837

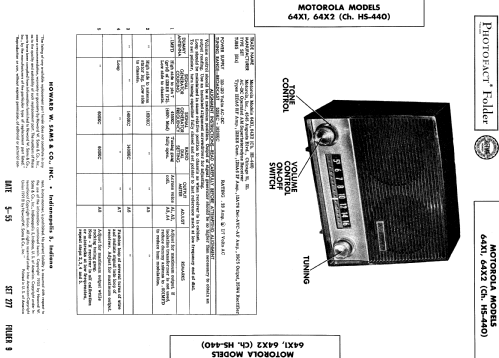

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12BA6 12BE6 12BA6 12AT6 35C5 35W4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 110 - 120 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 5.25 inch = 13.3 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 64X1 Ch= HS-440 - Motorola Inc. ex Galvin Mfg.Co

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 307 x 255 x 150 mm / 12.1 x 10 x 5.9 inch

• Notes

• Color is Mahogany. See also the same Motorola model 64X2 in Emerald Green.

• Net weight (2.2 lb = 1 kg)
• 3.4 kg / 7 lb 7.8 oz (7.489 lb)

• Source of data
• Beitman Radio Diagrams, Vol. 15, 1955

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 5-55, Set 277, Folder 9)

• Literature/Schematics (3)
• Motorola Folder No. 3466, for 1955.

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
