• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1955 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 257991

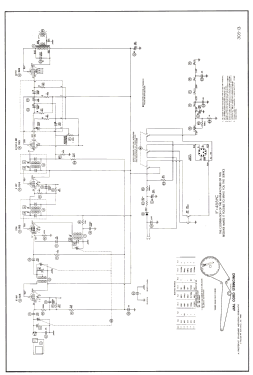

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 1U4 1R5 1U4 1U5 3V4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / AC/DC 117=110-120/ 9 & 90 Volt

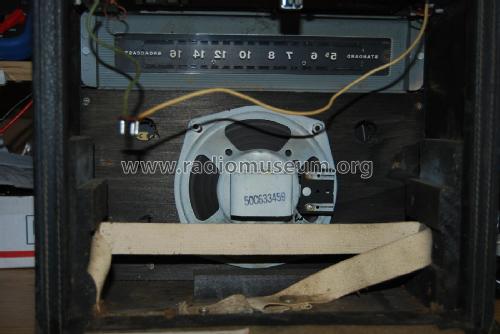

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: 65L2 Diplomat Ch= HS-455 - Motorola Inc. ex Galvin Mfg.Co

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 12 x 9.5 x 6.75 inch / 305 x 241 x 171 mm

• Notes

• Motorola model 65L2 is a three power portable AM superheterodyne receiver.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 305 Folder 13 dated 2-56)

• Author
• Model page created by Mark Skala. See "Data change" for further contributors.
