- Country
- United States of America (USA)
- Manufacturer / Brand
- Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Year
- 1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 213732
- Number of Tubes
- 6
- Valves / Tubes
- Main principle
- Superhet with RF-stage
- Power type and voltage
- AC/DC-set
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet. / Ø 5 inch = 12.7 cm
- Material
- Wooden case
- from Radiomuseum.org

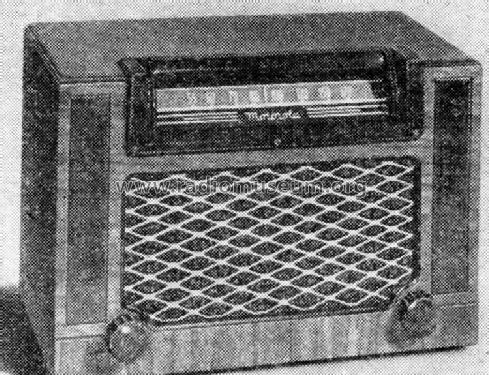

- Model: 65X15 - Motorola Inc. ex Galvin Mfg.Co
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 13.25 x 8.5 x 7.125 inch / 337 x 216 x 181 mm
- Notes
- Built-in Aero-Vane loop antenna. Tuning 540 to 1720 kc.
- Mentioned in

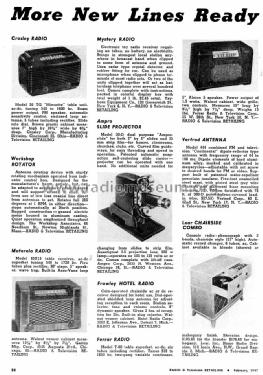

- Radio Retailing (Radio & Television R.) (February 1947 page 54.)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
