68F14B Ch= HS-124
Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Year
- 1948/1949
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 49167
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 105 - 125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 68F14B Ch= HS-124 - Motorola Inc. ex Galvin Mfg.Co
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 15.875 x 28.625 x 15.25 inch / 403 x 727 x 387 mm
- Notes
-
Color= Blonde Mahogany. This Motorola model 68F14 with the Chassis HS-124 is available in different colors: model 68F14 in Brown Mahogany, model 68F14B in Blonde Mahogany and model 68F14M in Red Mahogany.
- External source of data
- Ernst Erb

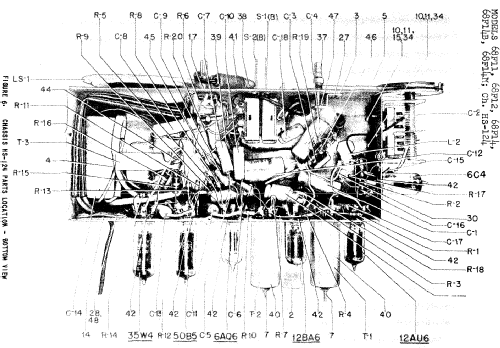

- Circuit diagram reference
- Rider's Perpetual, Volume 20 covering 1950
- Mentioned in

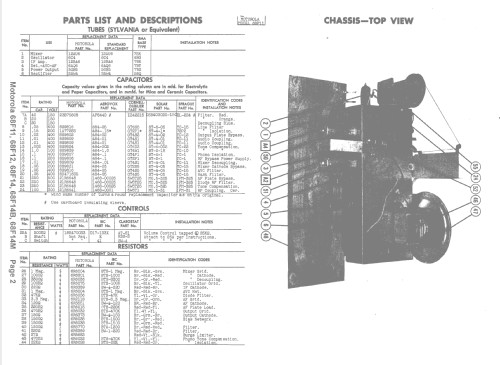

- Photofact Folder, Howard W. SAMS (496-13 Set 58 Folder 13)
- Literature/Schematics (3)
- Motorola Folder D1237 for 1949.
