• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1957 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 84440

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 1T4 1R5 1U4 1DN5 3V4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / (9; 90); AC/DC 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

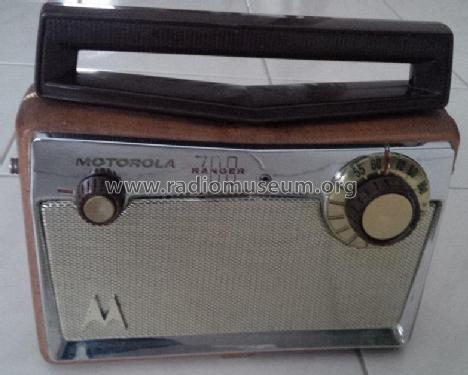

• Model: 6P34S "700 Ranger" Ch= HS-562 - Motorola Inc. ex Galvin Mfg.Co

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 10 x 10 x 3 inch / 254 x 254 x 76 mm

• Notes

• Motorola model 6P34S is a Three Power Portable AM Receiver.Color= Sun Tan leatherette.

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 18, 1958

• Mentioned in
• Collector's Guide to Antique Radios (6th edition)

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 364 Folder 6 dated 7-57)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
