XP19DE XP19DL XP19DR (6T) Japan 705

Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1967–1970 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 211552

 Technical Specifications

  • Number of Transistors
  • 6
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
  • Power out
  • 0.1 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: XP19DE XP19DL XP19DR Japan 705 - Motorola Inc. ex Galvin Mfg.Co
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 68 x 110 x 30 mm / 2.7 x 4.3 x 1.2 inch
  • Notes

  • MOTOROLA Six Transistor AM Pocket Radio (base model XP19D).

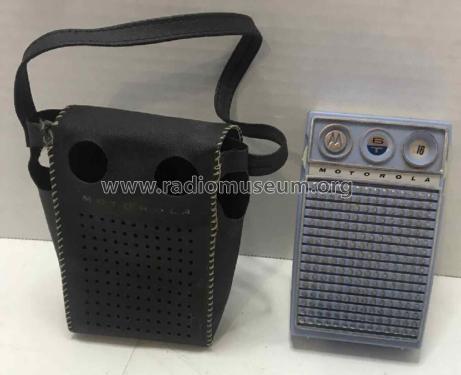

    Includes leather case and carry strap.

    The following models are identical except for cabinet color.

    Model Cabinet Color
    XP19DE Black and White
    XP19DL Blue and White
    XP19DR Red and White

    Made in Japan 705 (earlier) and in Taiwan (later)

  • Net weight (2.2 lb = 1 kg)
  • 0.215 kg / 0 lb 7.6 oz (0.474 lb)
  • Literature/Schematics (2)
  • - - Manufacturers Literature (Motorola Service Manual 68P63011A34, May 1968)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
