6X32E Ch= HS-563

• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1957 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 84444

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 2N168A 2N193 2N169 or. 2N292 2N191 or. 2N192 2N188 or. 2N241 2N188 or. 2N241

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage

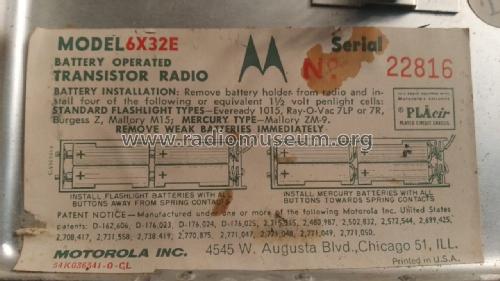

• Dry Batteries / AA: 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.75 inch = 7 cm

• Material
• Metal case

• from Radiomuseum.org
• Model: 6X32E Ch= HS-563 - Motorola Inc. ex Galvin Mfg.Co

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 6.5 x 4.125 x 1.75 inch / 165 x 105 x 44 mm

• Notes

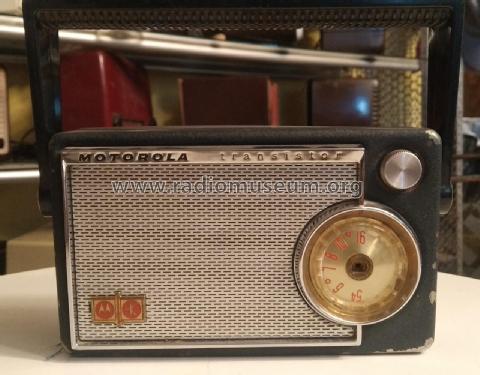

• Motorola model 6X32E is a battery operated portable AM Transistorized Receiver.  The color is navy blue and the case is made of aluminum.



• Price in first year of sale
• 95.00 $

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 18, 1958

• Mentioned in
• Collector's Guide To TrR1 Bunis trans.94 (1996, page 164)

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 364 Folder 7 dated 7-57)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
