• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1948

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 243902

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• 6AG5 12AT7 6AU6 6AU6 6AU6 6AU6 6AU6 6AL5 12SN7GT 25L6GT 12SN7GT 6SL7GT 12SN7GT 25L6GT 1B3GT 7JP4

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.8 inch = 14.7 cm

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: 7VT5 Ch= TS-18 - Motorola Inc. ex Galvin Mfg.Co

• Shape
• Tablemodel, low profile (big size).

• Notes

• TV Receiver.
  Channels 2 thru 13.

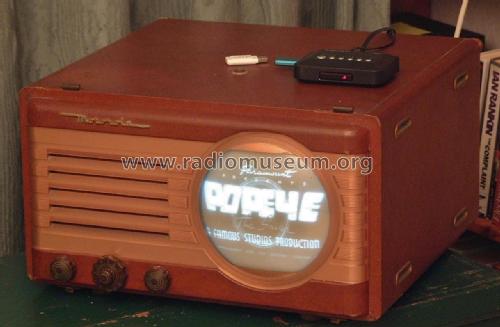

  7VT5R is the red (tan) leatherette version, 7VT5B is the blond leatherette version.

• Mentioned in

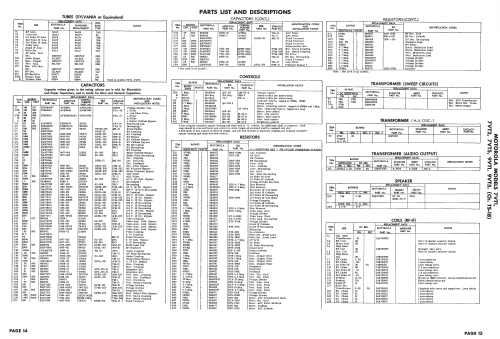

• Photofact Folder, Howard W. SAMS (Vol.9/50 Date 1-50 83-6 Set 83 Folder 6)

• Literature/Schematics (1)
• - - Manufacturers Literature

• Author
• Model page created by Friedrich Weber † 12.09.2014. See "Data change" for further contributors.
