• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1949

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 142569

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• 6AG5 12AT7 6AU6 6AU6 6AU6 6AU6 6AU6 6AL5 12SN7GT 25L6GT 12SN7GT 6SL7GT 12SN7GT 25L6GT 1B3GT 8BP4

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110-120 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet. / Ø 5.8 inch = 14.7 cm

• Material
• Wooden case

• from Radiomuseum.org

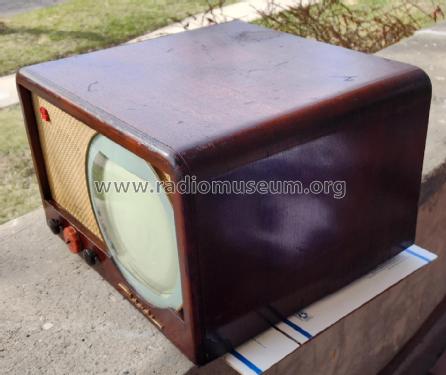

• Model: 9VT1 Ch= TS-18 - Motorola Inc. ex Galvin Mfg.Co

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 16 x 11 x 17 inch / 406 x 279 x 432 mm

• Notes
• Motorola 9VT1;
  ~8" round CRT B/W TV with US standard VHF tuner (Ch. 2 - 13), 110 W power consumption, mahogany cabinet.

• Source of data
• -- Collector info (Sammler)

• Mentioned in
• Photofact Folder, Howard W. SAMS (Vol. 9/50 Date 1-50 83-6 Set 83 Folder 6)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
