• Year
  • 1964 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 92796

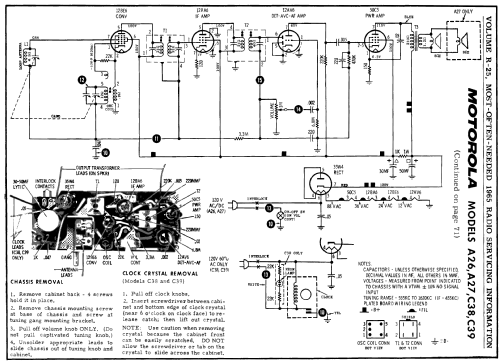

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / Either DC 120V or AC 60 cycle 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: A26W - Motorola Inc. ex Galvin Mfg.Co
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Notes
  • The Motorola A26W is an AC/DC operated 5 tube BC band receiver. Cabinet color is white.

  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 25, 1965
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
