- Country
- United States of America (USA)
- Manufacturer / Brand
- Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Year
- 1964 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 248895
RECONSTRUCTED LABEL

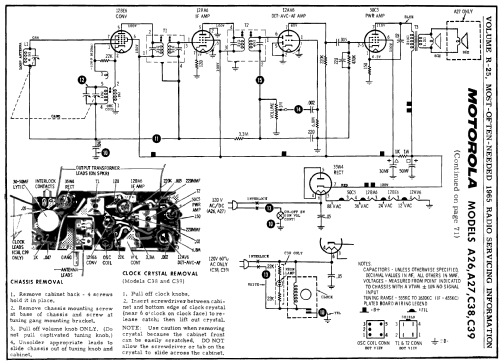

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / Either AC 60 cycles, 110 to 120V or DC, 110 to 120 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: A27B - Motorola Inc. ex Galvin Mfg.Co
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 11 x 6.5 x 4 inch / 279 x 165 x 102 mm
- Notes
-
The Motorola A27B is an AC/DC operated, 5 tube BC band receiver. BC band frequency range is 532 to 1620kHz. Has Qty(1) PM 4" speaker and Qty(1) PM 3.5" speaker. Cabinet color is blue.
The following models use the same schematic and cabinet but have different cabinet colors:
Model Number Cabinet Color A27B Blue A27N Beige A27P Pink A27W White Sams Photofact Set 725, Folder 8 covers the following models: A26B/N/W, A27B/N/P/W, C38B/N/W, C39B/N/P/W.
- Net weight (2.2 lb = 1 kg)
- 1.465 kg / 3 lb 3.6 oz (3.227 lb)
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 25, 1965
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 725 Folder 8 Date 11-64)
- Literature/Schematics (2)

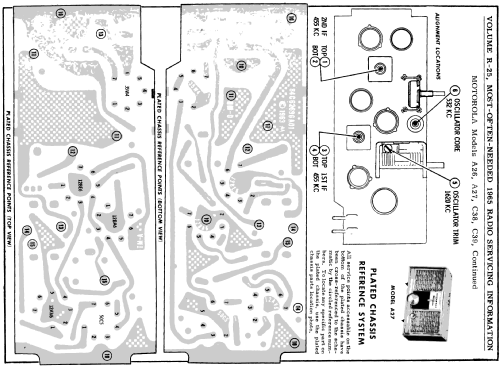

- Beitman Radio Diagrams, Vol. 25, 1965 (Page 70, 71)
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
