All Transistor X61E Ch= HS-6137
Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Year
- 1965 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 254406

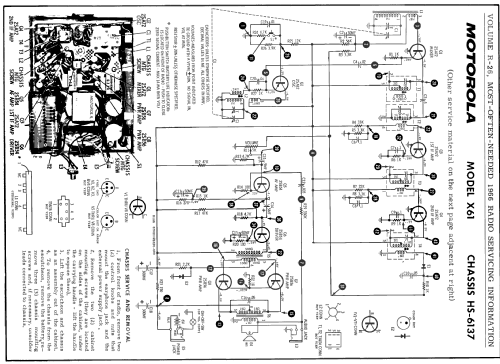

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 9
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Batteries / addl. power jack / AA: 4 x 1.5V; 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: All Transistor X61E Ch= HS-6137 - Motorola Inc. ex Galvin Mfg.Co
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Notes
-

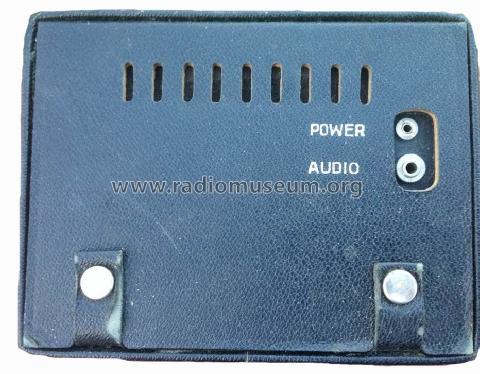

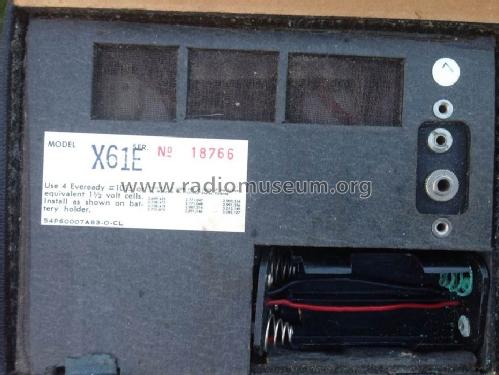

The Motorola X61E is a battery/DC operated 9 transistor portable AM radio. The AM frequency tuning range is 540 - 1620kHz. Has earphone jack that disconnects the speaker for private listening. Uses Qty(4) 1.5V "AA" batteries or can be powered from a separate 6VDC power source using the external power jack. Has battery life indicator switch and push-pull output.
The following models use the same schematic and cabinet but have different cabinet colors:
Model Cabinet Colors X61E Black X61N Brown
- Literature/Schematics (1)
- Photofact TSM Transistor Radio Series SAMS (TSM-59, pages 82-86 Dated September 1965)
- Literature/Schematics (2)
- Beitman Radio Diagrams, Vol. 26, 1966 (Page 52)
- Author
- Model page created by Daniel Rosha. See "Data change" for further contributors.
