AX4N Ch=HS-918
Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Year
- 1961 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 136294
- Number of Transistors
- 6
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

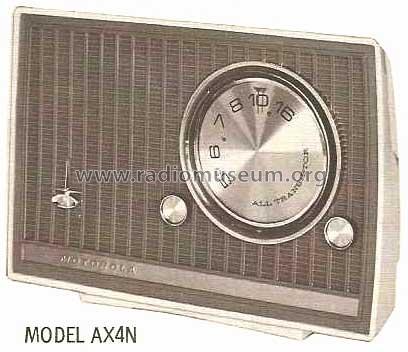

- Model: AX4N Ch=HS-918 - Motorola Inc. ex Galvin Mfg.Co
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Notes
-
Sams TSM 18 reports a single page for the circuit diagram of the following models: AX4B/G/N, AX5P/W (chassis HS-918, HS-919). Under the description it reports the following colors for the cabinet front: blue (AX4B), green (AX4G), brown (AX4N), pink (AX5P), and white (AX5W).
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 592 folder 7 date 8-62)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
