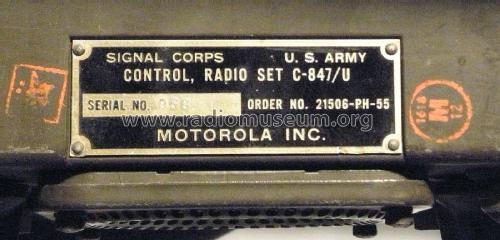

Control, Radio Set C-847/U

Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1952
  • Category
  • Military Equipment (not Re, Tr or RXT)
  • Radiomuseum.org ID
  • 277189

 Technical Specifications

  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 24 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Control, Radio Set C-847/U - Motorola Inc. ex Galvin Mfg.Co
  • Shape
  • Rack
  • Dimensions (WHD)
  • 230 x 145 x 95 mm / 9.1 x 5.7 x 3.7 inch
  • Notes

  • Bediengerät zur Einstellung von Lautstärke und Rauschsperre und zur Auswahl des Arbeitskanals (2 Kanäle) des Funkgeräts.

    Das Bediengerät C-847/U ist Teil des Fahrzeug-Funksprechgeräts (Radio Sets) AN/VRC-19. Zur vollständigen Anlage gehören außerdem
    - Empfänger (Receiver, Radio) R-394/U
    - Empfänger-Stromversorgung (Power Supply) PP-867/U
    - Sender (Transmitter, Radio) T-278/U
    - Sender-Stromversorgung (Dynamotor Power Supply) DY-98G
    - Gehäuse (Cabinet, Electrical Equipment) CY-938/VRC.

  • Net weight (2.2 lb = 1 kg)
  • 2.650 kg / 5 lb 13.4 oz (5.837 lb)
  • Author
  • Model page created by Siegfried Droese. See "Data change" for further contributors.
