CU835DM Ch= C23TS-921

• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1967

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 238701

• Picture

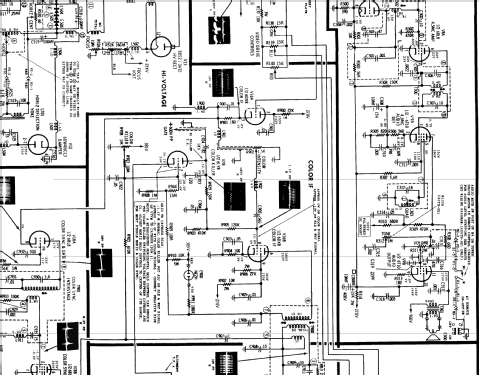

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 19

• Valves / Tubes
• 6HA5 or 6HM5 6KZ8 6BZ6 6BZ6 6EJ7 6DX8 6LY8 6BL8 6T10 6GH8 6LB6 or 6LF6 6DW4 or 6CL3 3AT2 or 3BS2 6BL8 6CW5 6DX8 6LE8 6BL8 25AP22 or 25SP22

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: CU835DM Ch= C23TS-921 - Motorola Inc. ex Galvin Mfg.Co

• Shape
• Console with any shape - in general

• Notes

• The Motorola CU835DM is a 25" color TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with chassis C23TS-921, VHF tuner LOPTT-399, UHF tuner HTT-624 or HTT-627 and picture tube 25AP22 or 25SP22. Console model with Mahogany wooden cabinet. Uses Qty(1) Elliptical PM 3" x 5" speaker.

• Source of data
• - - Manufacturers Literature

• Literature/Schematics (2)
• - - Manufacturers Literature (Motorola Datasheet 68P65155A01 Dated 9-67)

• Author
• Model page created by John Kusching. See "Data change" for further contributors.
