F.M. Station Monitor T-1130A

Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1959 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 331820

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 26
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 117 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: F.M. Station Monitor T-1130A - Motorola Inc. ex Galvin Mfg.Co
  • Shape
  • Rack
  • Dimensions (WHD)
  • 21 x 13 x 10 inch / 533 x 330 x 254 mm
  • Notes

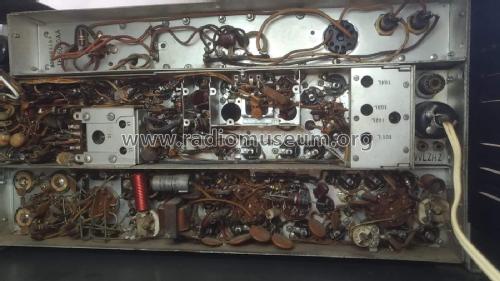

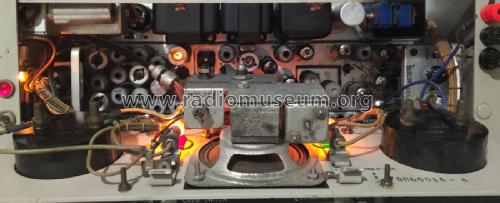

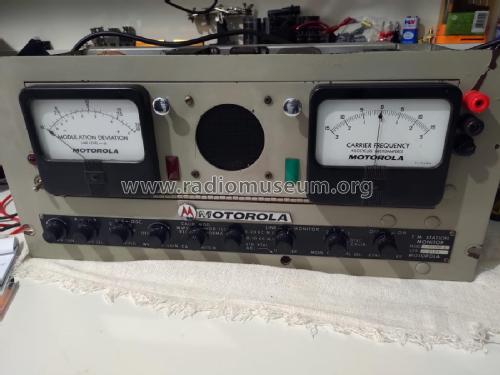

  • The Motorola T-1130A is a frequency and modulation monitor used to check the frequency of VHF radio frequency monitors.  A receiver in the monitor receives the National Bureau of Standards WWV time signal (5, 10, or 15 Mhz) as the basic reference frequency.  The calibration oscillator is then "zero beat" against WWV to set the control receiver precisely on frequency.

    Direct-reading measurement of RF carrier displacement from assigned center frequency. Up to five carrier frequencies in any one band moni­tored with pre-set crystal controlled circuits.

    Additional channel monitoring through simple crystal exchange.
    Modulation deviation monitoring for both narrow and wideband systems with maximum dis­placement indication displayed directly in kilo­cycles.

    Oscilloscope connection provisions on front panel for modulation deviation monitoring.

  • Net weight (2.2 lb = 1 kg)
  • 50.56 lb (50 lb 9 oz) / 22.954 kg
  • Author
  • Model page created by Heitor Toledo. See "Data change" for further contributors.
