- Country
- United States of America (USA)
- Manufacturer / Brand
- Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Year
- 1959
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 72107
Sams Photofact Folders
Ebay Seller aasnowskate Item 130685914581

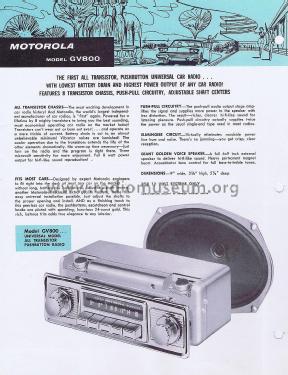

Motorola Print Ad
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 262.5 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 14 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Metal case
- from Radiomuseum.org
- Model: GV-800 - Motorola Inc. ex Galvin Mfg.Co
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 9 x 3.125 x 5.5 inch / 229 x 79 x 140 mm
- Notes
-
The Motorola Model GV-800 is a Battery operated Universal Type Transistorized AM Automobil Receiver.
6 x 9 inch external speaker
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 19, 1959
- Mentioned in
- -- Original prospect or advert
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 2-59, Set 431, Folder 14)
- Author
- Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
