Handie-Talkie FM Radio PT 500 D Cell Power Pack
Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Year
- 1978
- Category
- Commercial Transmitter & Receiver (TRX not Amateur)
- Radiomuseum.org ID
- 265921
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Transceiver
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Dry Batteries / "D" 11 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

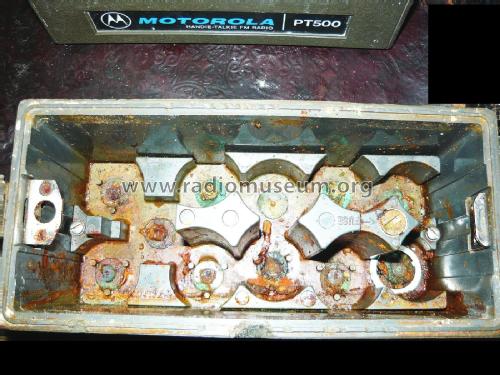

- Model: Handie-Talkie FM Radio PT 500 [D Cell Power Pack] - Motorola Inc. ex Galvin Mfg.Co
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 200 x 130 x 90 mm / 7.9 x 5.1 x 3.5 inch
- Notes
-
Motorola PT500 Handie-Talkie FM Radio is a portable transceiver. It was available with different "power packs," including D-cells, lantern batteries, rechareable nickel-cadium and 117 VAC. They operate on the VHF range of 136 to 174 mHz with either 2 or 5 watts of output power.
- Net weight (2.2 lb = 1 kg)
- 2 kg / 4 lb 6.5 oz (4.405 lb)
- Author
- Model page created by Michael Gnaedig-Fischer. See "Data change" for further contributors.
