• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1958

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 154286

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 12AX7 EL84 6X4

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: HK39B Ch= HS-712A-1 - Motorola Inc. ex Galvin Mfg.Co

• Shape
• Tablemodel, with any shape - general.

• Notes
• The Motorola Model HK39B is an AC Operated 3 Tube Audio Amplifier and speaker system to be used as the right channel when converting Motorola models 3H24-3, 3H24-4, 3H25-2, 3H25-3, 6H26, 6H27, 5K21, 5K21-3, 5K23, 5K23-3, 5K11, 5K11-1 and 10KT12 to stereophonic operation. Uses chassis HS-712A. Cabinet is Blonde Oak. This model has Qty(1) 6" PM speaker and Qty(1) 4" PM speaker.

• Literature/Schematics (1)

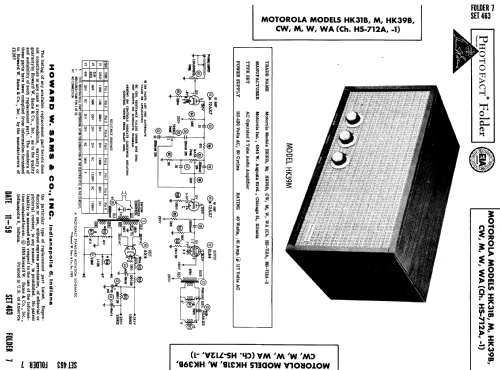

• Photofact Folder, Howard W. SAMS (Date 11-59, Set 463, Folder 7)

• Literature/Schematics (2)
• - - Manufacturers Literature

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
