• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1962 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 89966

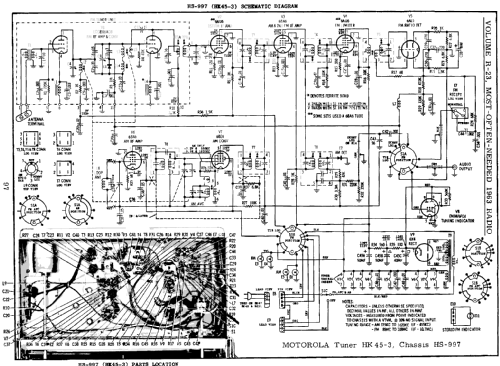

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• ECC85 6AU6 6BA6 6BA6 EM84 6BE6 6AU6 6AL5 6X4

• Main principle
• Superhet with RF-stage; ZF/IF 455/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 120 Volt

• Loudspeaker
• - For headphones or amp.

• from Radiomuseum.org
• Model: HK45-3 Ch= HS-997 - Motorola Inc. ex Galvin Mfg.Co

• Notes
• Modell HK45-3 is an AM/FM Tuner.

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 23, 1963

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
