HK-43 Ch= HS-783A

Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1959
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 147196

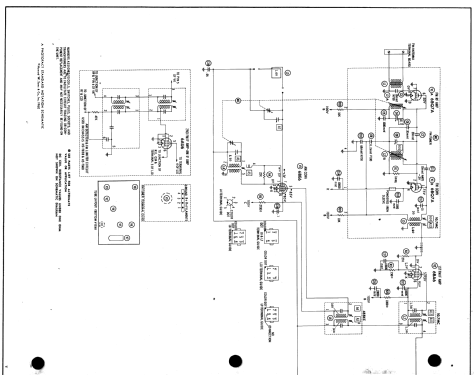

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110 - 120 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: HK-43 Ch= HS-783A - Motorola Inc. ex Galvin Mfg.Co
  • Shape
  • Chassis only or for «building in»
  • Notes
  • The Motorola Model HK43 is an AC operated 8 Tube AM-FM tuner custom designed for installation in the record starage compartment of Motorola phonograph models SK28, SK29, SK30 and SK31. Uses chassis HS-783A. AM band tuning range: 540 - 1600KHz, FM band tuning range: 88 - 108MHz.
    Sams photofact set 483 folder 10 date 5-60 feature the Motorola model HK-42 with chassis HS-783A and HS-783B and the model HK-43 with chassis HS-786A and HS-786B as the same schematic.

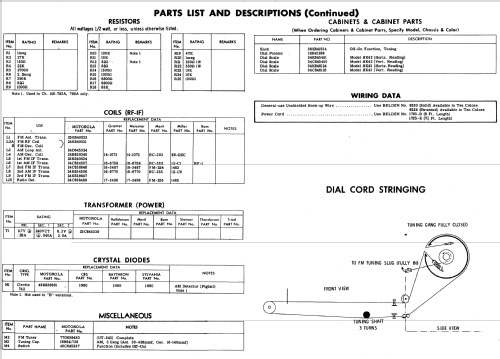

  • Literature/Schematics (2)
  • - - Manufacturers Literature
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
