- Country
- United States of America (USA)
- Manufacturer / Brand
- Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Year
- 1951 ?
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 354598

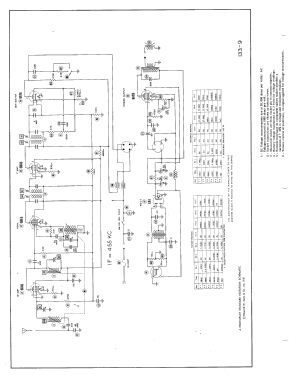

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: Mopar 606 - Motorola Inc. ex Galvin Mfg.Co
- Shape
- Chassis only or for «building in»
- Notes
-
Mopar model 606 is a battery operated custom-built automotive superheterodyne receiver. Speaker is PM elliptical 6" x 9".
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 133, folder 9, dated 5-51)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
