• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1958 ?

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 82908

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BL6 12AD6 12AF6 12AE6 or 12AJ6 12K5

• Number of Transistors
• 1

• Semiconductors

• Main principle
• Superhet with RF-stage; ZF/IF 262,5 kHz; 3 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Metal case

• from Radiomuseum.org
• Model: MoPar 845 Dodge D66,D67,D70,D71,D72 - Motorola Inc. ex Galvin Mfg.Co

• Shape
• Chassis only or for «building in»

• Notes

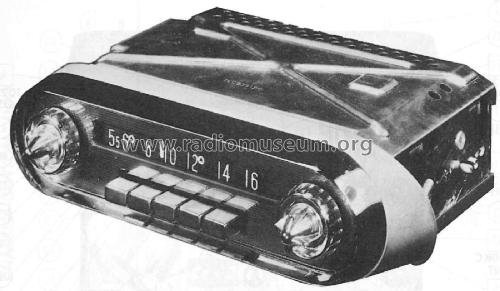

• Mopar model 845 is a battery operated custom built AM automobile receiver with transistorized output.

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 17, 1957

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 390 Folder 6 dated 3-58)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
