MoPar 900 Dodge
Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Year
- 1954 ?
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 80904

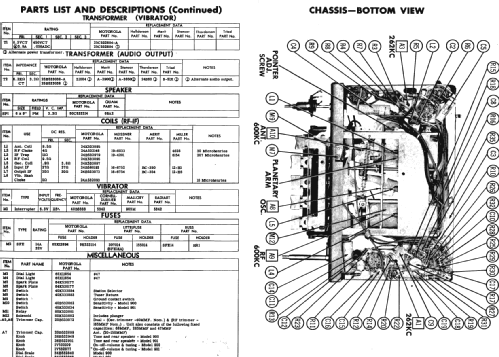

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superhet with RF-stage; ZF/IF 262 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Metal case
- from Radiomuseum.org
- Model: MoPar 900 Dodge - Motorola Inc. ex Galvin Mfg.Co
- Notes
- Vibrator for +B, Model for Dodge D55 D56, Push-pull output stage, AVC, rear seat speaker recpt.
- Source of data
- Beitman Radio Diagrams, Vol. 15, 1955
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
