• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1965

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 284865

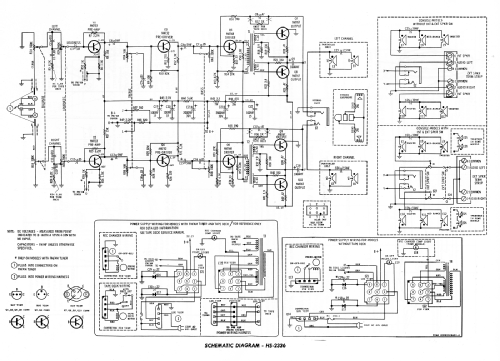

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 23

• Semiconductors

• Main principle
• Superhet with RF-stage; ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 120 Volt

• Loudspeaker
• 4 Loudspeakers

• Power out
• 20 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: PP310B Ch= HS-2336 + HS-2339 - Motorola Inc. ex Galvin Mfg.Co

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 24.25 x 16.5 x 11 inch / 616 x 419 x 279 mm

• Notes

• The Motorola PP310BW is a portable, all-transistor, stereophonic record player/changer and includes a stereo AM/FM tuner.  It has a walnut finish.

• Literature/Schematics (1)
• Motorola Service Manual 68P63010A19, dated 10-65

• Author
• Model page created by David Erali. See "Data change" for further contributors.
