Remote Control Antenna Switch TLN4476A
Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Year
- 1965 ??
- Category
- Antenna (Aerial) or Coupler
- Radiomuseum.org ID
- 335675

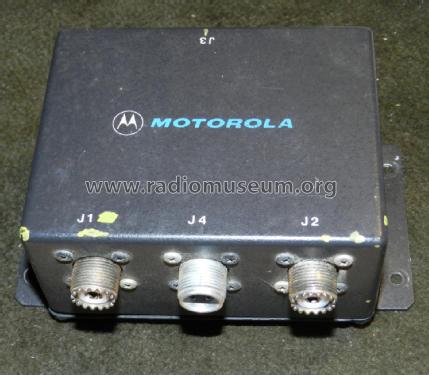

Motorola coax RF relay switch external view
- Wave bands
- - without
- Power type and voltage
- Direct Current supply (DC) / 12 (nominal) Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Remote Control Antenna Switch TLN4476A - Motorola Inc. ex Galvin Mfg.Co
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 4.5 x 2.5 x 4.5 inch / 114 x 64 x 114 mm
- Notes
-
Motorola remote control antenna switch box with fast acting sealed glass-reed relay rated at 100W up to 950 MHz. Voltage control is with 12 VDC using the Twinax port which switches the J3 port from J1 to J2 when the relay energized. Box is auminum for shielding
