• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1960

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 211952

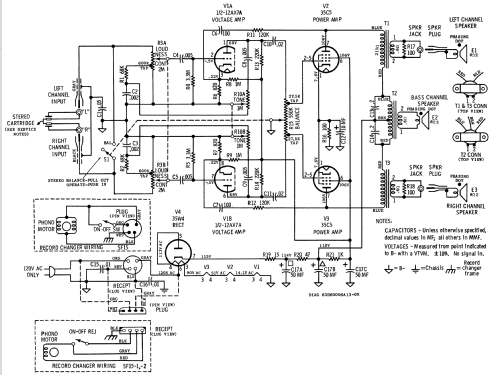

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 12AX7A 35C5 35C5 35W4

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 120 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: SF15R-2 Ch= HS-860 - Motorola Inc. ex Galvin Mfg.Co

• Shape
• Tablemodel, with any shape - general.

• Notes
• The Motorola Model SF15R-2 is an AC operated 4 Tube portable stereo Phono Amplifier and a 4 Speed Automatic Record Changer. Uses chassis HS-860. Cabinet color is Red. This model has Qty(1) 6" PM speaker and Qty(2) 5" PM speakers. Uses Record Changer VM20RC. Has separate bass channel that drives the 6" speaker.

• Source of data
• - - Manufacturers Literature

• Author
• Model page created by John Kusching. See "Data change" for further contributors.
