SH21N Ch= HS-829 HS-830
Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Year
- 1960
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 211727

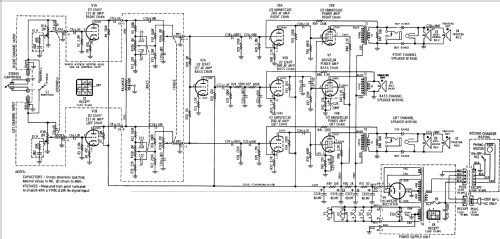

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 120 Volt
- Loudspeaker
- 5 Loudspeakers
- Power out
- 10 W (unknown quality)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: SH21N Ch= HS-829 HS-830 - Motorola Inc. ex Galvin Mfg.Co
- Shape
- Tablemodel, with any shape - general.
- Notes
- The Motorola Model SH21N is an AC operated 6 Tube, three channel portable stereo Phono Amplifier and 4 Speed Automatic Record Changer. Uses audio-amp chassis HS-829 and power supply chassis HS-830. Cabinet color is Brown. This model has Qty(1) 6" PM speaker, Qty(2) 5.25" PM speakers and Qty(2) 4" PM speakers. Uses Record Changer VM33RC. Has separate bass channel that drives the 6" speaker.
- Source of data
- - - Manufacturers Literature
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
