SK16W Ch= HS-710 + HS-711
Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)
- Year
- 1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 165225
Picture from Motorola datasheet

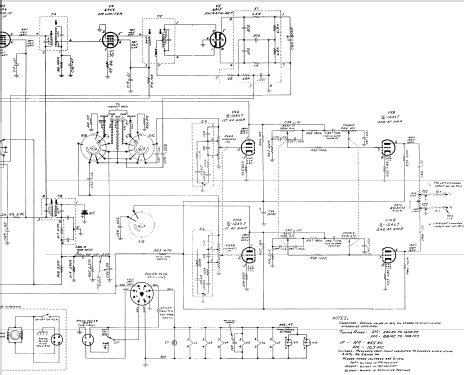

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- 6BQ7A 6BA6 6BA6 6BE6 EM81 6BA6 6AU6 6AL5 12AX7A 12AX7A 12AX7 12AX7 EL84 EL84 EL84 EL84 5U4GB
- Main principle
- Superhet with RF-stage; ZF/IF 455 / 10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: SK16W Ch= HS-710 + HS-711 - Motorola Inc. ex Galvin Mfg.Co
- Shape
- Console with any shape - in general
- Notes
- The Motorola Model S16W is an AC operated 17 Tube AM-FM Tuner and Amplifier with 4 Speed Automatic Record Changer.
The Right Channel Speaker System is Model S16W.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 6-59, Set 445, Folder 8)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
