SK40W-1 Ch= HS-833

Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1960
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 211823

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Alternating Current supply (AC) / 120 Volt
  • Loudspeaker
  • 3 Loudspeakers
  • Power out
  • 10 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

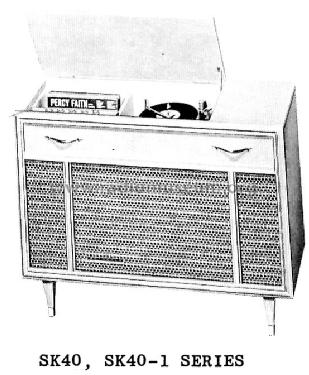

  • Model: SK40W-1 Ch= HS-833 - Motorola Inc. ex Galvin Mfg.Co
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes
  • The Motorola Model SK40W-1 is an AC operated 6 Tube, three channel stereo Phono Amplifier with 4 Speed Automatic Record Changer. Uses chassis HS-833. Cabinet is Walnut. This model has Qty(1) 10" PM speaker and Qty(2) 6" PM speakers. Uses Record Changer VM42RC. Has separate bass channel that drives the 10" speaker.
  • Source of data
  • - - Manufacturers Literature
  • Author
  • Model page created by John Kusching. See "Data change" for further contributors.
