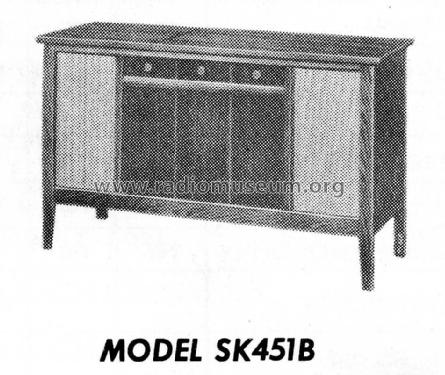

SK451B Ch= HS-2334 + HS-2339

Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1965
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 284977

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 21
  • Semiconductors
  • Main principle
  • Superhet with RF-stage; ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Record Player (perh.Changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 60Hz, 120 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Power out
  • 5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: SK451B Ch= HS-2334 + HS-2339 - Motorola Inc. ex Galvin Mfg.Co
  • Shape
  • Console with any shape - in general
  • Dimensions (WHD)
  • 42 x 25 x 15.5 inch / 1067 x 635 x 394 mm
  • Notes

  • The following models are console, all-transistor, stereophonic record player/changers with a stereo AM/FM tuner.  They use the same schematic, but have different cabinet styles and colors, 4-speed automatic record changers, and number of speakers.

    Model

    Cabinet Color

    Record Changer

    No. of Speakers

    SK450BM

    Mahogany

    VM115RC

    4

    SK451BW

    Walnut

    VM116RC

    4

    SK452BS

    Maple

    VM116RC

    6

    SK453BW

    Walnut

    VM116RC

    6
  • Literature/Schematics (1)
  • Motorola Service Manual 68P63010A19, dated 10-65
  • Author
  • Model page created by David Erali. See "Data change" for further contributors.
