SK49B Ch= HS-862 HS-870 HS-899

Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1960 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 211516

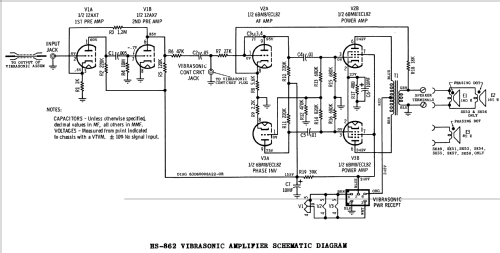

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 13
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Alternating Current supply (AC) / 120 Volt
  • Loudspeaker
  • 6 Loudspeakers
  • Power out
  • 51 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: SK49B Ch= HS-862 HS-870 HS-899 - Motorola Inc. ex Galvin Mfg.Co
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes

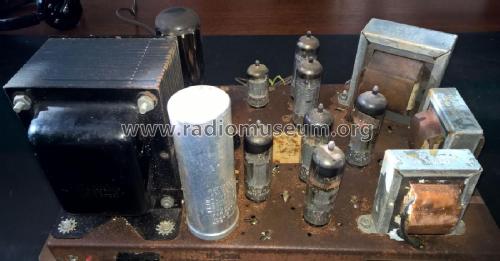

  • The Motorola Model SK49B is an AC operated 13 Tube Three-channel stereo Phono Amplifier containing the Motorola Vibrasonic system and a 4 Speed Automatic Record Changer. Uses pre-amp chassis HS-899, vibrasonic amplifier chassis HS-862 and power amp/power supply chassis HS-870. Cabinet is Blonde Oak. This model has Qty(1) 15" PM speaker, Qty(2) 8" PM speakers, Qty(2) 5" PM speakers and Qty(1) 6" PM "Vibrasonic" speaker. Uses Record Changer VM44RC. Has separate bass channel that drives the 15" speaker. An optional drop-in AM-FM tuner(model HK45) was available as a dealer option.
  • Source of data
  • - - Manufacturers Literature
  • Author
  • Model page created by John Kusching. See "Data change" for further contributors.
