SK65B Ch= HS-952

Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1961
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 231548

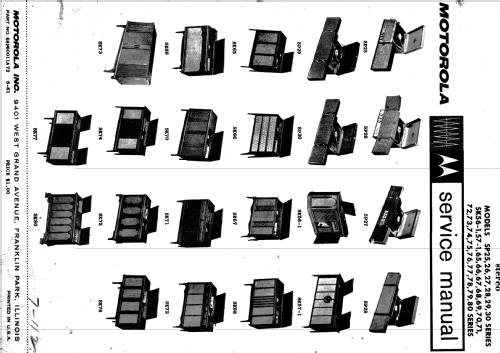

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Audio-Amplification; 2 AF stage(s)
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 120 Volt
  • Loudspeaker
  • 3 Loudspeakers
  • Power out
  • 0.75 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: SK65B Ch= HS-952 - Motorola Inc. ex Galvin Mfg.Co
  • Shape
  • Console with any shape - in general
  • Notes

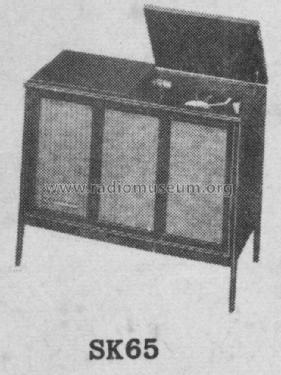

  • The Motorola SK65B is an AC operated 4 Tube Stereo Phono Amplifier and 4 Speed Automatic Record Changer. Uses chassis HS-952. Has Mono/Stereo switch.  Cabinet is Blonde Oak. This model has Qty(1) 10" PM speaker and Qty(2) 6" PM speaker. Uses Record Changer VM54RC.

    Motorola models SK65W (Walnut) and SK65M (Mahogany) are similar except for the type of wood used for the cabinet.

  • Circuit diagram reference
  • Beitman Radio Diagrams Vol. 22, 1962
  • Literature/Schematics (2)
  • - - Manufacturers Literature (Motorola Datasheet 68P60011A72 Dated 6-61)
  • Author
  • Model page created by John Kusching. See "Data change" for further contributors.
