• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1964 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 92819

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 12

• Valves / Tubes
• 6C9_Twin-Tetrode 6AU6 6BA6 6BE6 6AU6 12AX7A 12AX7A EL84 6V6GTA 6V6GTA EL84 5U4GB

• Number of Transistors
• 3

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 120 Volt

• Loudspeaker
• 7 or more Loudspeakers

• from Radiomuseum.org

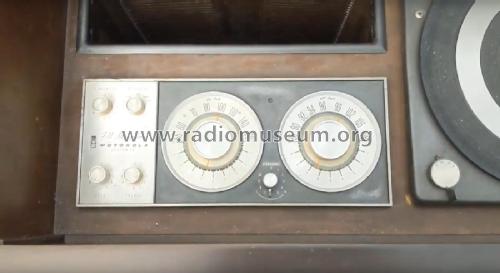

• Model: SKR163 Ch= HS-1185 + HS-1239 - Motorola Inc. ex Galvin Mfg.Co

• Notes

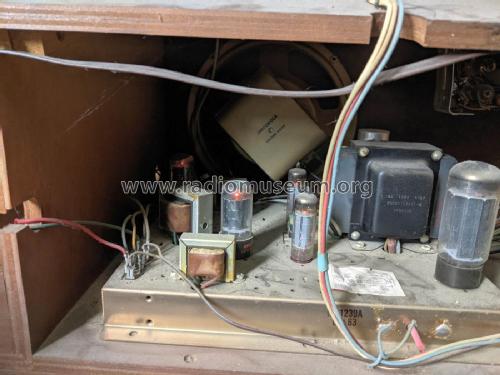

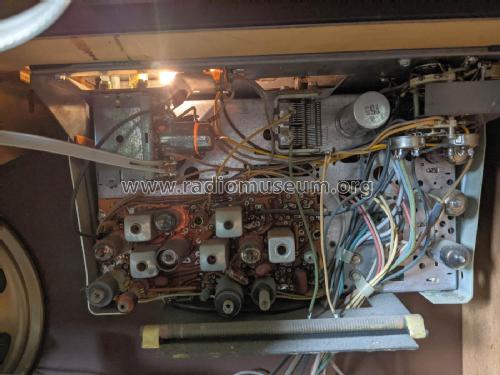

• Chassis HS-1185 AM/FM Tuner is very similar to HS-1138; HS-1239 is an Power Amplifier with bass vibrasonic.
  Chassis used in Modells SKR145 and SKR163.

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 25, 1965

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
