SP26R Ch= HS-943

Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1961
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 231546

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Audio-Amplification; 2 AF stage(s)
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 120 Volt
  • Loudspeaker
  • 3 Loudspeakers
  • Power out
  • 0.75 W (unknown quality)
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: SP26R Ch= HS-943 - Motorola Inc. ex Galvin Mfg.Co
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Notes

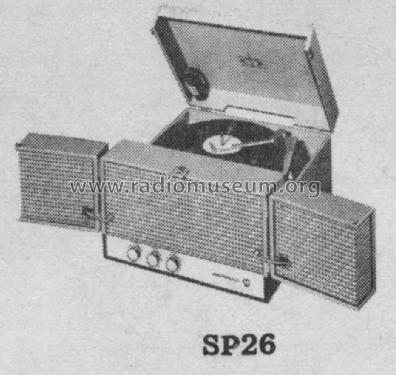

  • The Motorola SP26R is an AC operated 4 Tube Stereo Phono Amplifier and 4 Speed Automatic Record Changer. Uses chassis HS-943. Has Mono/Stereo switch.  Cabinet color is Red. This model has Qty(1) 6" PM speaker and Qty(2) 5" PM speaker. Uses Record Changer VM54RC.

    Motorola model SP26B is similar except for the cabinet color, which is Blue.

  • Circuit diagram reference

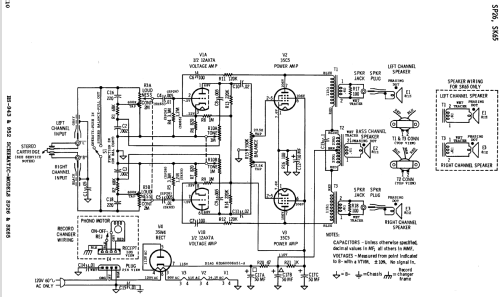

  • Beitman Radio Diagrams Vol. 22, 1962
  • Literature/Schematics (2)
  • - - Manufacturers Literature (Motorola Datasheet 68P60011A72 Dated 6-61)
  • Author
  • Model page created by John Kusching. See "Data change" for further contributors.
