SP29E Ch= HS-948, HS-949

• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1961

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 88039

• Picture
• Schematics

Previous Next

Previous Next

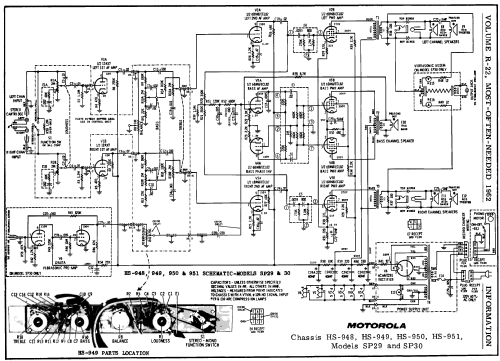

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12AX7 6BM8 or ECL82 6BM8 or ECL82 6BM8 or ECL82 6BM8 or ECL82 6CA4 or EZ81

• Main principle
• Audio-Amplification; 3 AF stage(s)

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 110 - 120 Volt

• Loudspeaker
• 5 Loudspeakers

• Power out
• 14 W (35 W max.)

• Material
• Various materials

• from Radiomuseum.org
• Model: SP29E Ch= HS-948, HS-949 - Motorola Inc. ex Galvin Mfg.Co

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Notes

• The Motorola SP29E is an AC operated 6 Tube Stereo Phono Amplifier and 4 Speed Automatic Record Changer. Uses power supply chassis HS-948 and preamp/poweramp chassis HS-949. Has Mono/Stereo switch. Also has 3rd channel used for bass. Cabinet color is Black. This model has Qty(1) 8" PM speaker for bass channel, Qty(2) 4" speakers and Qty(2) 5.25" PM speakers. Uses Record Changer VM57RC.

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 22, 1962

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 9-62, Set 596, Folder 7)

• Literature/Schematics (2)
• - - Manufacturers Literature (Motorola Datasheet 68P60011A72 Dated 6-61)

• Literature/Schematics (3)
• Beitman Radio Diagrams, Vol. 22, 1962 (Page 70)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
