• Country
• United States of America (USA)

• Manufacturer / Brand
• Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

• Year
• 1971 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 245306

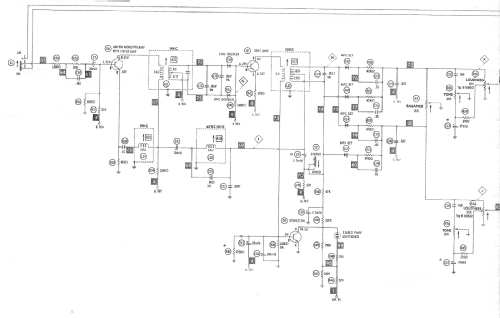

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 120 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Stereophonic TT39FW - Motorola Inc. ex Galvin Mfg.Co

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 11.5 x 6.5 x 4.25 inch / 292 x 165 x 108 mm

• Notes

• Motorola AM-FM Table Top Radio Model Stereophonic TT39FW.
  Loudness, Tone and Balance Control.  AFC (On-Off), Mode (Stereo-Mono) and Selector (AM - FM) Buttons.
  Power Consumption 22 Watts.

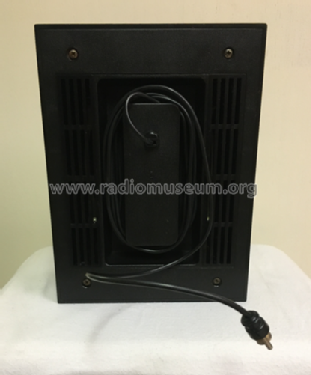

  2x Detachable Speakers - speakers are 5" x 7" each, speaker cabinets are 6.5"W x 8.5"H x 3.5"D each and weigh 2 lb. 0 oz. each.  There is 11 feet of speaker wire for each speaker. Radio and speaker combined weight is 8lb. 8oz.




• Net weight (2.2 lb = 1 kg)
• 4 lb 8 oz (4.5 lb) / 2.043 kg

• Source of data
• Photofact Folder, Howard W. SAMS

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
