TC-101

Motorola Inc. (ex Galvin Mfg.Co. Chicago); Schaumburg (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1953 ?
  • Category
  • Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter
  • Radiomuseum.org ID
  • 224537

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 2
  • Main principle
  • RF Converter/Adapter (not voltage converter)
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 cycles, 117 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: TC-101 - Motorola Inc. ex Galvin Mfg.Co
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 10.2 x 4.75 x 6.5 inch / 259 x 121 x 165 mm
  • Notes

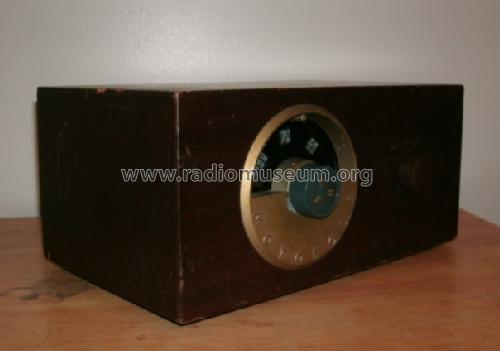

  • The Motorola TC-101 is an AC operated 2 tube self contained UHF converter.  It is housed in a wooden mahogany cabinet.  Uses tuner TT-19.  Tuning range is channels 14 thru 83.  Has selenium rectifier used in power supply.

    The following models use the same tuner and schematic but have different cabinets:

    Model Cabinet
    TC-101 Mahogany
    TC-101B Limed Oak



  • Circuit diagram reference
  • Photofact Folder, Howard W. SAMS
  • Literature/Schematics (2)
  • - - Manufacturers Literature (Motorola Datasheet 68P730410)
  • Author
  • Model page created by Mark Skala. See "Data change" for further contributors.
